GI - Appendicitis

Atim Uya, MD

Henry Chaiaza, MD



I. Introduction and Indications

Acute appendicitis is the most common surgical emergency in children with higher incidence between 5-15 years.1

The classic presentation is periumbilical pain radiating to the right lower quadrant with associated anorexia, leukocytosis, low-grade fever, seen in 70% of children.2

Younger children tend to not have a classic presentation and hence are at higher risk of perforation.3,4

Children are particularly at risk for the adverse effects of ionizing radiation.5 Ultrasonography lacks the risks of radiation, is widely available and has been shown to be faster compared to obtaining a CT scan.

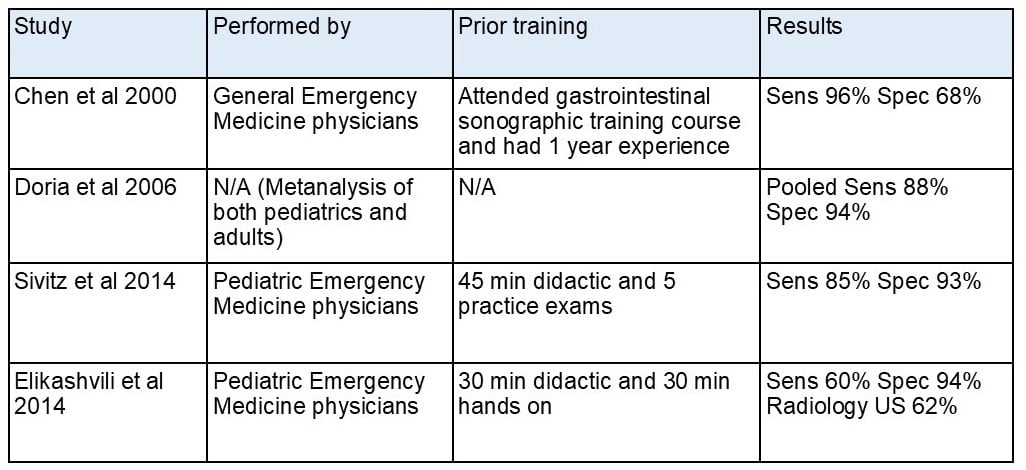

Sensitivity is generally good but there is wide variability, based on user level of experience and when each study was performed. See Table 1 below.6-9


Indications: Patients presenting with right lower quadrant abdominal pain or abdominal pain in younger children where there is suspicion for appendicitis.

II. Anatomy

Relevant anatomy

The appendix is a tubular structure that is connected to the cecum.

Both the cecum and appendix are typically located in the right lower quadrant (McBurney’s point) however; the cecum and appendix can be found in other parts of the abdomen (ie, left lower quadrant in malrotation).

When scanning in the right lower quadrant, the two landmarks that are used to help identify the appendix are the psoas muscle and the iliac vessels (Figure 1).

Figure 1 - typical location appendix.jpg

Figure 1. Typical location of the appendix anterior to both the psoas and iliac vessels

The location of the appendix relative to the cecum can vary as demonstrated in Figure 2.

FIgure 2 - Appendix variant locations.jpg

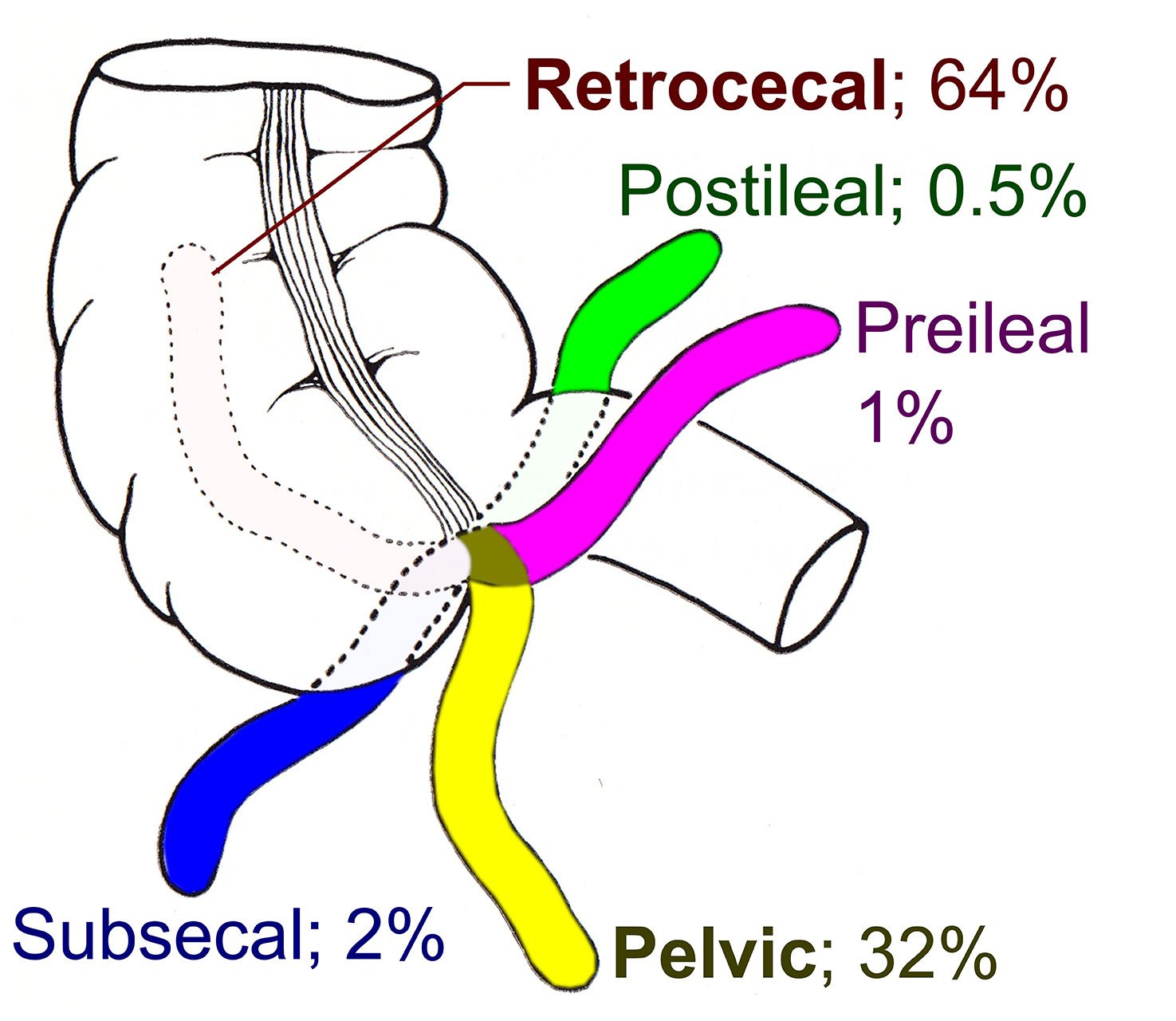

Figure 2. Variant anatomical positions of the appendix



III. Scanning technique, normal findings and common variants

Scanning technique

  • Probe selection
    Typically, the high frequency linear array transducer (7-12 MHz) is used to scan and evaluate the appendix.

    In patients with a larger body habitus the lower frequency probes (curvilinear or phased-array) allow for deeper penetration albeit sacrificing some of the image resolution.
  • Scanning approach
    Prior to starting your ultrasound exam be sure to adequately treat the patient’s pain. Poor pain tolerance can reduce your ability to obtain good quality images.

    The scanning approach depends on how cooperative patient is. If the patient is able to point to the area of maximal tenderness, use this as your starting point for the scan.

    “Maximal Area of Tenderness” approach
    • Place probe over area of maximal tenderness (you can allow the patient to place probe over the area as well)
    • Apply graded compression (gradual and increasing steady pressure) to displace bowel gas. Not utilizing this technique may lead to an uncooperative patient due to pain.
    • Localize the landmarks in the right lower quadrant. Identify the psoas muscle and the iliac vessels.
    • Localize the appendix, which is typically anterior to the psoas and iliac vessels (Figure 1).

If the patient is unable to point to the area of maximal tenderness you can utilize other scanning protocols such as the one presented by Sivitz et al. (Figure 3)8

Figure 3 - Scan Protocol.jpg

Start by placing your linear probe in a transverse position at the level of the umbilicus. Apply graded compression.

  1. Move your probe laterally to identify the ascending colon
  2. Move down to the end of the cecum.
  3. Move medially and identify the psoas and iliac vessels.
  4. Move down the border of the cecum.
  5. Move up the border of the cecum.
  6. Turn your probe into a sagittal position and identify the end of the cecum in the long axis and move medially across the psoas


Video 1.
How to Perform the Scan

Normal findings

The typical normal appendix in children has a characteristic inner hypoechoic band (Figure 4).10,11

This feature allows the appendix to be differentiated from small bowel.

The hypoechoic band is the result of the mucosal layer with abundant lymphoid tissue.

Figure 4 - hyperechoic inner band appendix.jpg

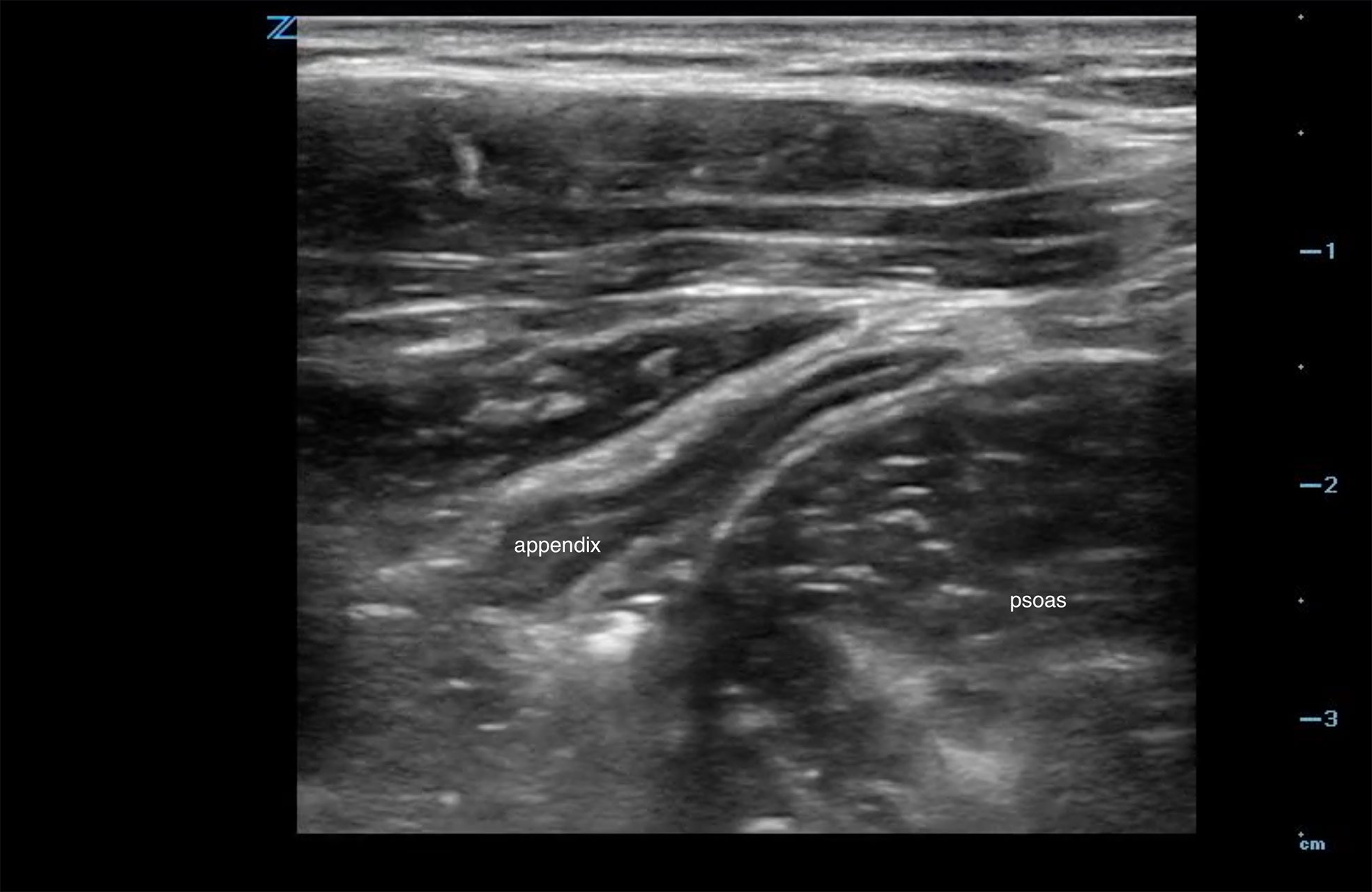

Figure 4. Hyperechoic inner band of normal appendix.

The following video shows a normal appendix lying just anterior to the psoas and iliac vessels





Video 2a, b. Position of appendix anterior to the psoas muscle and iliac vessels.

IV. Pathology

Diagnostic criteria: Appendix measuring more than 6 mm in transverse diameter under compression (98% Sens)1

Figure 5 - dilated appy short axis.jpg

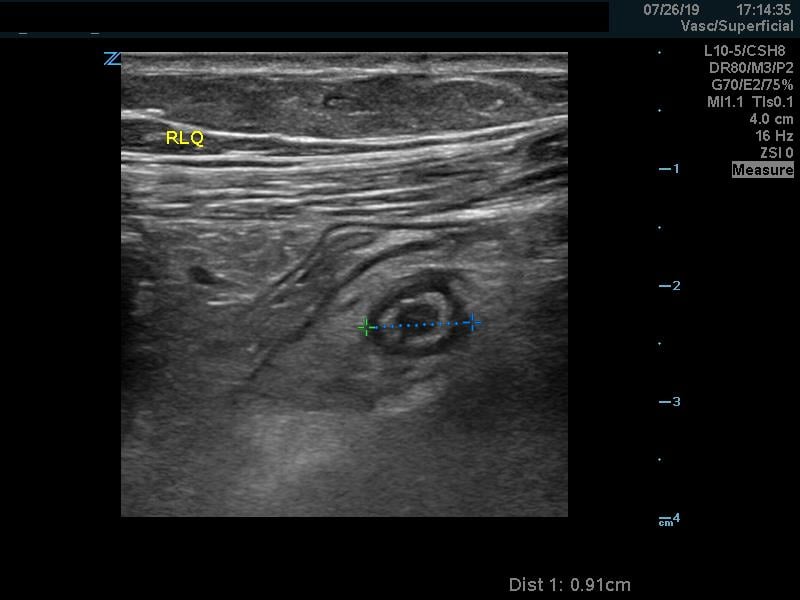

Figure 5. Dilated, non-compressible appendix.



Video 3. Dilated, non-compressible appendix (compression applied).

Other secondary sonographic findings (with varying sensitivities and specificities):

Presence of an appendicolith. Note that this may be seen in normal size appendix. When present, it is associated with an earlier and higher risk of perforation.12

Figure 6 - appendicolith.jpg

Figure 6. Appendicolith in acute appendicitis.



Video 4. Appendicolith in acute appendicitis.

Hyperemia within the appendiceal wall on color doppler image. Also referred to as a “ring of fire.” (Sens 52%, Spec 96%) Normal bowel wall signal has little to no color flow on Doppler.13

Periappendiceal fat inflammation. On ultrasound, surrounding fat will become hyperechoic.

Figure 7 - periappendiceal inflammation.jpg

Figure 7. Periappendiceal fat inflammation.



Video 5. Area of hyperechogenicity surrounding the appendix. (Sens 91 spec 76-98%)13 This sign can also be seen in inflammatory bowel disease.

Periappendiceal free fluid.

Treatment

Surgical though using antibiotics as treatment is being explored.14

V. Pearls and Pitfalls

Assuming that non visualization of the appendix means that the appendix is normal. Point-of-care ultrasound should be used to rule in the diagnosis rather than to rule-out especially more inexperienced user.

Confusing other structures for the appendix, eg, the terminal ileum, mesenteric lymph nodes.



Video 6. Recognizing terminal ileum, which has bowel content, is non-blind ending and demonstrates peristalsis.

Perforation may leave the appendix non-distended and may make visualization difficult.

Tip appendicitis: always make sure you visualize the entire appendix including the blind end.

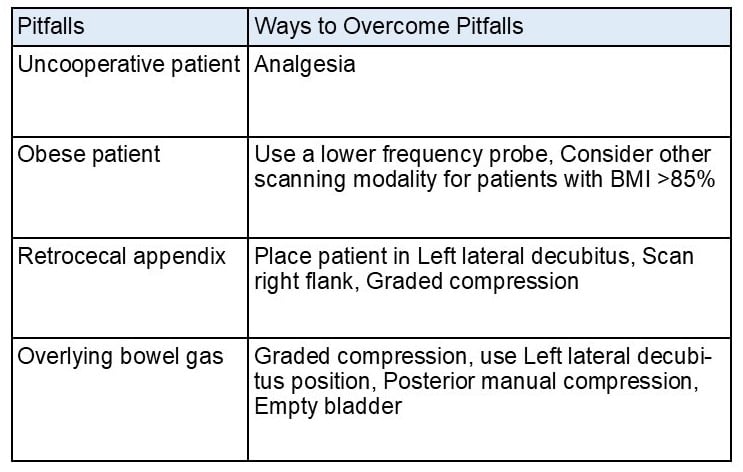

Other pitfalls and ways to overcome them are shown in Table 2.
